Location
Point
x, y coordinates of the center of the layout.
When you set properties for Organization Chart objects, also specify properties for Box Locator, Data Element, Parent Link, Child Link, Rectangle, and Text objects. The association between an Organization Chart object and supporting objects is represented in Figure A-9.

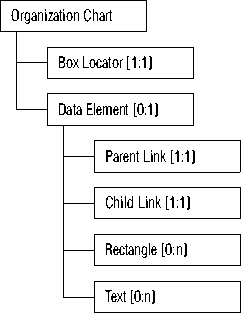

Figure A-9 Organization Chart Objects
The Organization Chart object has the following child objects.
Box Locator
See "Child Locator".
Data Element
See "Data Element".
Parent Link
See "Elbow Connector".
Child Link
See "Connection Point".
Rectangle
See "Rectangle".
Text
See "Text".
