The DataBlade API Fastpath interface allows DataBlade API modules
to directly invoke a UDR that was registered in the database.
This interface bypasses the overhead associated with invoking a UDR through
an SQL statement. This interface bypasses the query optimizer
and executor (which are needed for an SQL statement). You can use
this interface to execute any SQL routine.
Important:
You
cannot use the Fastpath interface to execute iterator functions
or
SPL functions with the
WITH RESUME keywords
in their
RETURN statement. For more information
on iterator functions, see
Writing
an Iterator Function.
The
Fastpath interface is useful for calling a UDR in the following
situations:
- You do not know the location of the UDR you want to call.
- At compile time, you do not know the name of the UDR you
want to call.
- You need to promote or cast arguments of the UDR you want
to call.
- The UDR you want to call is an overloaded routine and
you need to obtain the version for particular argument data types.
- The UDR you want to call resides in a different shared-object
file or DataBlade.
The Fastpath interface looks up a UDR or cast function
in the system catalog tables to obtain information about the routine
and then executes it. It passes any return values from the routine
to the caller in internal (binary) format. With the Fastpath interface,
a DataBlade API module can call a foreign UDR.
Server Only
For a
C UDR, a foreign UDR is a UDR that
does not reside in the same shared-object file as the UDR that
calls it. One UDR can only call another UDR directly
when that called UDR resides within the same shared-object
file or DataBlade module as the calling UDR. For example,
in Figure 49, the func3( ) user-defined function
can directly call func2( ) because
both of these functions reside in the source1.so shared-object
file.
However, there is no portable way for the C code in one shared-object
file to directly call a function in another shared-object file.
Different operating systems provide different degrees of support
for this type of calling. In addition, if the foreign UDR is part
of a DataBlade module, your UDR has no way of
knowing which DataBlade modules might be installed at a particular
customer site.
To call a foreign UDR, a C UDR must use
the DataBlade API Fastpath interface. Figure 50 shows
how a UDR that is one shared-object file, source1.so,
can call a foreign UDR, funcB( ).
Even though the funcB( ) routine
is defined in the source2.so shared-object
file, func3( ) can invoke it through
the Fastpath interface.

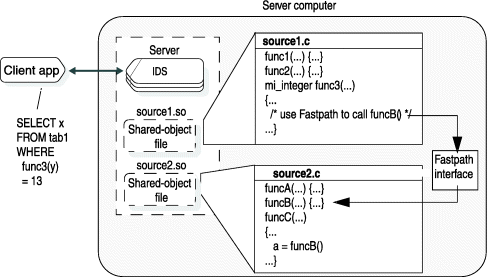

Figure 50. Using Fastpath to Access a Routine in Another Shared-Object File
In Figure 50, the Fastpath interface loads
the source2.so shared-object file, which contains
the funcB( ) routine, into memory.
For Fastpath to be able to invoke funcB( ), the funcB( ) routine
must already have been registered in the database. The call to funcB( ) within funcC( ) does not require
use of the Fastpath interface because these two functions reside
in the same shared-object file, source2.so.
The
Fastpath interface allows a DataBlade developer to extend a DataBlade module that
someone else provides. This developer can define new UDRs
on data types that some other DataBlade provides.
End of Server Only
Client Only
For
a client LIBMI application, a foreign UDR is
any UDR that is registered in the database that is currently
open. Client LIBMI programs can use the
Fastpath interface to directly invoke registered UDRs.
End of Client Only
You can execute foreign UDRs with an SQL statement,
such as EXECUTE FUNCTION. (For more information,
see Calling UDRs Within a DataBlade API
Module.) However, Fastpath
is usually a quicker method for the execution of a UDR because
it bypasses query processing.
Important:
For the
Fastpath interface to execute a
UDR, the
UDR must
be registered in the database with a
CREATE FUNCTION or
CREATE PROCEDURE statement.
When you create a DataBlade, register internal
UDRs
that might be of general use. In this way, you can cleanly protect
private interfaces and support public ones.
The Fastpath interface provides the
following DataBlade API functions to look up a registered UDR, execute
it, and free resources.
| DataBlade API Function |
Purpose |
More Information |
| Look up a UDR and
obtain a function descriptor for it: |
page Obtaining
a Function Descriptor |
| mi_cast_get( ) |
Looks up a cast function that casts
between two data types (specified by type identifiers) and returns
its function descriptor |
| mi_func_desc_by_typeid( ) |
Looks up a UDR by its routine
identifier and returns its function descriptor |
| mi_routine_get( ) |
Looks up a UDR by its routine
signature (specified as a character string) and returns its function
descriptor |
| mi_routine_get_by_typeid( ) |
Looks up a UDR by its routine
signature (specified as separate arguments) and returns its function
descriptor |
| mi_td_cast_get( ) |
Looks up a cast function that casts
between two data types (specified by type descriptors) and returns
its function descriptor |
| Obtain information from a function
descriptor: |
page Obtaining Information from a Function
Descriptor |
| mi_fparam_get( ) |
Returns a pointer to the MI_FPARAM structure
that is associated with the function descriptor |
| mi_func_handlesnulls( ) |
Determines whether the UDR that
is associated with the function descriptor can handle NULL arguments |
| mi_func_isvariant( ) |
Determines whether the user-defined
function that is associated with the function descriptor is a variant function |
| mi_func_negator( ) |
Determines whether the user-defined
function that is associated with the function descriptor has a negator function |
| mi_routine_id_get( ) |
Returns the identifier for the routine
that is associated with the function descriptor |
| Execute the UDR through
its function descriptor: |
page Executing
the Routine |
| mi_routine_exec( ) |
Executes a UDR that is associated
with a specified function descriptor |
| Use a user-allocated MI_FPARAM structure
for the UDR: |
page Using
a User-Allocated MI_FPARAM Structure |
| mi_fparam_allocate( ) |
Allocates an MI_FPARAM structure |
| mi_fparam_copy( ) |
Creates a copy of an existing MI_FPARAM structure |
| mi_fparam_free( ) |
Deallocates a user-allocated MI_FPARAM structure |
| mi_fp_usr_fparam( ) |
Determines whether a specified MI_FPARAM has
been allocated by the database server or the user |
| Free resources that the function
descriptor uses: |
page Releasing
Routine Resources |
| mi_routine_end( ) |
Releases resources that are associated
with the function descriptor |
The following sections describe each of these tasks in detail.
