INFORMIX-ESQL/C Programmer's Manual Working with Opaque Data Types of the Universal Data Option

An opaque data type is a user-defined data type that can be used in the same way as the Informix built-in data types. The opaque data type allows you to define new data types for your database applications.

An opaque data type is fully encapsulated; the database server does not know about the internal format of an opaque data type. Therefore, the database server cannot make assumptions about how to access a column having an opaque data type. The database developer defines a data structure that holds the opaque-type information and support functions that tell the database server how to access this data structure.

For more information on how to create an opaque data type, see the description of the CREATE OPAQUE TYPE statement in the Informix Guide to SQL: Syntax and in Extending Informix Dynamic Server.

You can access the value of an opaque data type from an ESQL/C application in one of two ways:

• In the external format, as a character string

Transfer of the external format between the client application and database server is supported by the database server through the input and output support functions of the opaque data type.

• In the internal format, as a data structure in an external programming language (such as C)

Transfer of the internal format between the client application and database server is supported by the database server through the receive and send support functions of the opaque data type.

The following table shows the ESQL/C data types you can use to access an opaque data type.

This chapter uses an opaque data type called circle to demonstrate how ESQL/C lvarchar and fixed binary host variables access an opaque data type. This data type includes an x,y coordinate, to represent the center of the circle, and a radius value. Figure 10-1 shows the internal data structures for the circle data type.

typedef struct

	{

	double		x;

	double		y;

	} point_t;



typedef struct

	{

	point_t			center;

	double			radius;

	} circle_t;

Figure 10-2 shows the SQL statements that register the circle data type and its input, output, send, and receive support functions in the database.

CREATE OPAQUE TYPE circle (INTERNALLENGTH = 24,

	ALIGNMENT = 4);



CREATE FUNCTION circle_in(c_in lvarchar) RETURNS circle

	EXTERNAL NAME '/usr/lib/circle.so(circle_input)'

	LANGUAGE C;

CREATE IMPLICIT CAST (lvarchar AS circle WITH circle_in);



CREATE FUNCTION circle_out(c_out circle) RETURNS lvarchar

	EXTERNAL NAME '/usr/lib/circle.so(circle_output)'

	LANGUAGE C;

CREATE IMPLICIT CAST (circle AS lvarchar WITH circle_out);



CREATE FUNCTION circle_rcv(c_rcv sendrcv) RETURNS circle

	EXTERNAL NAME '/usr/lib/circle.so(circle_receive)'

	LANGUAGE C;

CREATE IMPLICIT CAST (sendrcv AS circle WITH circle_rcv);



CREATE FUNCTION circle_snd(c_snd circle) RETURNS sendrcv

	EXTERNAL NAME '/usr/lib/circle.so(circle_send)'

	LANGUAGE C;

CREATE IMPLICIT CAST (circle AS sendrcv WITH circle_snd);



CREATE FUNCTION radius(circle) RETURNS FLOAT

	EXTERNAL NAME '/usr/lib/circle.so'

	LANGUAGE C;

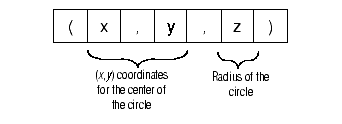

Suppose the input and output functions of the circle data type define the following external format that Figure 10-3 shows.

Figure 10-3 External Format of the circle Opaque Data Type

Figure 10-4 shows the SQL statements that create and insert several rows into a table called circle_tab, which has a column of type circle.

CREATE TABLE circle_tab (circle_col    circle);

INSERT INTO circle_tab VALUES ('(12.00, 16.00, 13.00)');

INSERT INTO circle_tab VALUES ('(6.5, 8.0, 9.0)');
