Informix DataBlade API Programmer's Manual Writing a User-Defined Routine

To service multiple client-application SQL requests, the database server uses virtual processors (VPs). The database server breaks the SQL request into distinct tasks, based on the resource that the task requires. Different VP types, called virtual-processor classes (VP classes), service the different kinds of tasks. The following table lists some of the types of VP classes that the database server supports.

The database server preserves the state of each request in a thread. It then assigns the thread to the VP class that manages the task or resource that the request requires. The VPs in the VP class service multiple requests for their resource by scheduling the threads on the resource.

The CPU virtual processor (CPU VP) is the main VP for the database server. It acts as the central processor for client-application SQL requests. When a client application establishes a connection, the CPU VP creates the session thread for that client application. A CPU VP runs multiple session threads to service multiple SQL client applications.

Tip: This section describes VPs in the context of C UDRs. For a general description of VPs and user-defined routines, see the description on VPs in "Extending Informix Dynamic Server 2000." For a description of virtual processors in general, see the chapter on the database server architecture in your "Administrator's Guide."

Because a session thread is the primary thread for the processing of SQL requests, any C UDRs in an SQL request normally execute in the CPU VP. However, the tasks that your C UDR needs to perform might limit its ability to execute in the CPU VP, as follows:

• A well-behaved UDR can execute in the CPU VP.

A well-behaved UDR adheres to a set of safe-code requirements that prevent the UDR from interfering with the efficient operation of the CPU VP.

• An ill-behaved UDR cannot execute in the CPU VP.

If a C UDR does not follow all the safe-code requirements for a well-behaved routine, it must execute in a user-defined VP class. Some of the safe-code requirements can be relaxed for a C UDR that runs in a user-defined VP.

The VP class in which a C UDR executes affects its performance characteristics and what operating-system interactions the UDR can safely use. Generally, the more coding restrictions that apply to the VP class, the more efficiently the VP class can execute the UDR.

Important: The success of your C UDRs and your DataBlade API project depends in large degree on how well you implement the features related to the safety and interoperability of your C UDR.

Creating a Well-Behaved Routine

Because the CPU VP is such a critical resource, it is important that the code it executes be well-behaved; that is, all code must have the following attributes:

• Preserve concurrency of the CPU VP.

The CPU VP assumes that every thread that it executes completes quickly. Code must not monopolize the CPU VP, preventing other threads from executing. The benefit of releasing the CPU VP so that it can execute other threads outweighs the overhead involved in saving the current thread state and switching to another thread.

• Be thread safe.

Code must be able to migrate among threads without loss of essential information or destruction of the global VP state. C UDR code is thread safe when all state information is entirely encapsulated within the arguments to each C function and within the scope of the function itself.

Informix ensures that code it provides to execute within SQL statements (such as built-in SQL functions) is well-behaved. However, Informix does not have control over the code you write in your C UDR. A C UDR must be well-behaved to execute in the CPU VP. As a UDR developer, you must ensure that your C UDR adheres to the safe-code requirements in Figure 12-5.

If a UDR does not follow the safe-code requirements in Figure 12-5, it is called an ill-behaved routine. An ill-behaved routine cannot safely execute in the CPU VP.

Warning: Execution of an ill-behaved routine in the CPU VP can cause serious interference with the operation of the database server. In addition, the UDR itself might not produce correct results.

If your C UDR was one of the ill-behaved traits in Figure 12-5, follow the suggestions in the Possible Workarounds column. The following sections describe more fully the safe-code requirements for a well-behaved C UDR. For more information on how to execute your C UDR in a user-defined VP, see Handling an Ill-Behaved Routine.

A well-behaved C UDR must preserve the concurrency of the CPU virtual processor (CPU VP). Concurrency means that two or more threads can be in the middle of their execution at the same time. The CPU virtual processor appears to execute multiple threads simultaneously because it switches between threads. The database server tries to keep a thread running on the same CPU VP that begins the thread execution. However, if the current thread is waiting for some other type of resource to be accessed or some other task to be performed, the CPU virtual processor is needlessly held up. To avoid this situation, the database server can migrate the current thread to a VP class that schedules the resource for which the thread is waiting.

For example, a query request starts as a session thread in the CPU VP. Suppose this query contains a C UDR that accesses a smart large object. While the thread waits for the smart-large-object data to be fetched from disk, the database server migrates the thread to an AIO VP, releasing control of the CPU VP so that other threads can execute.

At a given time, a VP can run only one thread. To maintain concurrency for session threads, the CPU VP swaps out one thread to allow another to execute. This process of swapping threads is sometimes called thread migration. This continual thread migration keeps the CPU VP available to process many threads. The speed at which CPU-VP processing occurs produces the appearance that the database server processes multiple tasks simultaneously.

Unlike an operating system, which assigns time slices to processes for their CPU access, the database server does not preempt a running thread when a fixed amount of time expires. Instead, it runs a thread until the thread yields the CPU VP. Thread yielding can occur at either of the following events:

• At a predetermined point in the code
• When the thread requires some non-CPU resource to continue execution

When a thread yields, the VP switches to the next thread that is ready to run. The VP continues execution and migration of threads until it eventually returns to the original thread.

For a C UDR to preserve concurrency of the CPU VP, it must ensure that it does not monopolize the CPU VP. When a C UDR keeps exclusive control of the CPU VP, it blocks other threads from accessing this VP. A C UDR can impair concurrency of the CPU VP if it performs the following tasks:

• It does not regularly yield the CPU.

You must ensure that the C UDR yields the CPU VP at appropriate intervals.

• It calls a blocking-I/O function.

You must ensure that the C UDR does not call any blocking-I/O functions.

Denying other threads access to the CPU VP can affect every user on the system, not just the users whose queries contain the same C UDR. If you cannot code a C UDR to explicitly yield during resource-intensive processing and to avoid blocking-I/O functions, the UDR is an ill-behaved routine and must execute in a user-defined VP class.

To preserve concurrency, a well-behaved C UDR must ensure that it regularly yields the CPU VP. During execution, a C UDR keeps exclusive control of the CPU VP until it completes execution or it yields the CPU VP. A C UDR might yield when it calls a DataBlade API function because DataBlade API functions automatically yield the VP when appropriate. For example, the UDR migrates to the AIO VP to perform any of the following kinds of I/O:

• Smart-large-object I/O with a DataBlade API function such as mi_lo_open(), mi_lo_read(), or mi_lo_write()
• External-file I/O with a DataBlade API file-access function such as mi_file_open(), mi_file_read(), or mi_file_write()

Therefore, you can assume that thread migration might occur during execution of any DataBlade API function.

However, if your C UDR performs any of the following types of resource-intensive tasks (which do not involve calls to DataBlade API functions), your UDR does not automatically yield the VP:

• A task that is CPU- or I/O-bound
• A task that causes other threads to wait for an undue length of time (usually longer than 0.1 seconds).

For such a C UDR to be well-behaved, it must explicitly yield the CPU VP with the DataBlade API function mi_yield(). The mi_yield() function causes the thread that is executing the UDR to voluntarily yield the CPU VP so that other threads get a chance to execute in the VP. When the original thread is ready to continue execution, execution resumes at the point immediately after the call to the mi_yield() function.

Tip: You can also use the mi_yield() function to yield a user-defined VP. For more information, see The Yielding User-Defined VP.

Write your C UDR so that it yields the VP at strategic points in its processing. Possible points include the beginning or end of lengthy loops and before and after expensive computations. Use of mi_yield() generally leads to an improved response time overall.

If you cannot code the C UDR to explicitly yield during resource-intensive passages of code, the UDR is an ill-behaved routine and must not execute in the CPU VP. To isolate a resource-intensive UDR from the CPU VP, you can assign the routine to a user-defined VP class. To determine which kind of user-defined VP to define, you must also consider whether you need to preserve concurrency of the user-defined VP. Keep in mind that all VPs of a class share a thread queue. If there are multiple users of your UDR, multiple threads can accumulate in the same thread queue. If your UDR does not yield, it blocks other UDRs that execute in the same VP class. Therefore, the VP might not effectively share between users. One user might have to wait while the UDR in the query of some other user completes.

You can use either type of user-defined VP to execute a resource-intensive routine:

• To preserve concurrency in an ill-behaved routine, execute it in a yielding user-defined VP.

Within your UDR, you can use the mi_yield() function to yield the user-defined VP to other threads that execute in the same VP class. To increase concurrency, you can define multiple instances of the yielding user-defined VP.

• If you cannot rewrite your ill-behaved routine to yield, execute it in a nonyielding user-defined VP.

A nonyielding user-defined VP executes the UDR to completion, thereby losing concurrency. However, it does allow the UDR to run.

For more information, see Handling an Ill-Behaved Routine.

To preserve concurrency, a well-behaved C UDR must avoid system calls that perform blocking input and output operations (I/O). These operating-system calls include the following calls:

When a C UDR executes any of these system calls, the CPU VP must wait for the I/O to complete. In the meantime, the CPU VP cannot process any other requests. The database server can appear to stall because the concurrency of the CPU VP is impaired.

If your C UDR needs to perform file I/O, do not use operating-system calls to perform this task. Instead, use the DataBlade API file-access functions. These file-access functions allow the CPU VP to process the I/O asynchronously. Therefore, they do not block the CPU VP. For more information, see Accessing Operating-System Files.

If your UDR must issue blocking I/O calls, assign the routine to execute in a user-defined VP class. When a UDR blocks a user-defined VP, only those UDRs that are assigned to that VP are affected. Your UDR must also handle any problems that could occur if the thread yielded. For example, operating-system files descriptors do not migrate with a thread if it moves to a different VP. For more information on how to assign a UDR to a user-defined VP, see Handling an Ill-Behaved Routine.

A well-behaved C UDR must be thread safe. During execution, an SQL request might travel around the different VP classes. For example, a query starts in the CPU VP, but it might migrate to a user-defined VP to execute a UDR that was registered for that VP class. In turn, the UDR might fetch a smart large object, which would cause the thread to migrate to the AIO VP.

Migrating a thread to a different VP means that the database server must preserve the state of the thread before it migrates the thread. When a client application connects to the database server, the database server creates a thread-control block (TCB) to store thread-state information needed when a thread switches VPs. The TCB includes the following thread-state information:

• Contents of the VP system registers
• Program counter, which contains the address of the next instruction to execute.
• Stack pointer, which points to private memory, called a thread stack, For more information on use of the thread stack by a UDR, see Managing Stack Space.

Tip: For more information on the structure and use of the thread-control block, see your "Administrator's Guide."

When a thread migrates from one VP to another, it releases its original VP so this VP can execute other threads. The benefit of releasing the CPU VP outweighs the overhead involved in saving the thread state. Therefore, a C UDR must be able to continue execution without loss of information when it migrates to a different VP.

For a C UDR to successfully migrate among VPs, its code must be thread safe; that is, it must have the following attributes:

• Does not perform any dynamic memory allocation with operating-system calls
• Does not modify global or static data
• Does not modify other global process-state information

Tip: A parallelizable UDR has additional coding restrictions. For more information, see Creating Parallelizable UDRs.

To be thread safe, a well-behaved C UDR must not use system memory-management routines to dynamically allocate memory. These operating-system calls include the following calls:

These operating-system calls allocate memory from the program heap space. The location of this heap space creates the following problems:

• Heap memory available to one VP is not visible after a thread migrates to another VP.

Once the thread migrates, the UDR can no longer access any data that was stored in heap memory. Even if the UDR allocates heap memory at the beginning of execution and frees this memory before it completes, the thread might still migrate to a different VP during execution of the UDR.

• Other VPs are not prevented from using the same address space for the shared-memory pool.

When a VP needs to extend the virtual memory pool, it negotiates the addition of new shared-memory segments to the existing pool. The VP then updates the resident portion of shared memory and sends a signal to other VPs so that they can become aware of changes to shared memory.

A VP that extends the memory pool is not aware of any portion of memory that malloc() (or any other system memory-management routine) is using. Therefore, the VP might try to use the same address space that a system memory-management call has reserved.

• Heap memory that system memory-management calls allocate is not automatically freed.

If a C UDR does not explicitly free this heap memory, memory leaks can occur.

For a C UDR to be well-behaved, it must handle dynamic memory allocation with the DataBlade API memory-management functions. These DataBlade API functions provide the following benefits:

• They allocate user memory from the database server shared memory.

All VPs can access database server shared memory. Figure 12-16 on page 12-57 shows the areas of memory from which DataBlade API and operating-system memory-management functions allocate. For more information, see Managing User Memory.

• They allocate user memory with a specified lifetime called a memory duration.

If a C UDR does not explicitly free memory that these DataBlade API functions allocate, the database server automatically deallocates it when its memory duration has expired. This automatic garbage collection reduces memory leaks. For more information, see Determining Memory Duration.

Important: Do not call operating-system memory-management functions from within a C UDR. Use these DataBlade API memory-management functions instead. The DataBlade API memory-management functions are safer in a C UDR than their operating-system equivalents. For more information, see Restricting Dynamic Memory Allocation

If you are porting legacy code to a C UDR, you might want to write simple C programs to implement system memory-management calls. The following code fragment shows a simple implementation of malloc() and free() functions:

/* mallocfix.c: This file contains "fixed" versions of the

**                            malloc() and free() system memory-management

**                            calls for use in legacy code that currently

**                            uses malloc() and free().

** Use mi_alloc() and mi_free() in new code.

**/

#include <mi.h>

void *malloc(size_t size)

{

	return (mi_alloc((mi_integer)size));

}



void free(void *ptr)

{

	mi_free(ptr);

}

This code fragment uses mi_alloc(), which allocates user memory in the current memory duration. Therefore, the fragment allocates the memory with the default memory duration of PER_ROUTINE. For more information, see Current Memory Duration.

If you cannot avoid using system memory-management functions, your C UDR is ill-behaved. You can use system memory-management functions in your UDR only if you can guarantee that the thread will not migrate. However, a thread could migrate during any DataBlade API call or any routines that are not CPU safe. Therefore, the only way to guarantee that the thread never migrates is to allocate and free the memory inside a code block that does not execute any DataBlade API functions.

This restriction means that if you must use a system memory-management function, you must segment the UDR into sections that use DataBlade API functions and sections that are not CPU safe. All files must be closed and memory deallocated before you leave the non-CPU-safe sections. For more information, see External-Library Routines.

To be thread safe, a well-behaved C UDR must avoid use of global and static variables. Global and static variables are stored in the address space of a virtual processor, in the data segment of a shared-object file. Therefore, they belong to the address space of the VP, not of the thread itself.

When an SQL statement contains a C UDR, the routine manager loads the shared-object file that contains the UDR object code into each VP. Therefore, each VP receives its own copy of the data and text segments of a shared-object file and all VPs have the same initial data in their shared-object data segments. Figure 12-6 shows a schematic representation of a virtual processor and indicates the location of global and static variables.

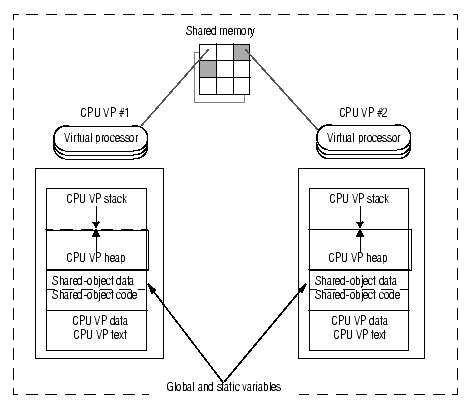

Figure 12-6 Location of Global and Static Variables in a VP

As Figure 12-6 shows, global and static variables are not stored in database server shared memory, but in the data and text segments of a VP. These segments in one VP are not visible after a thread migrates to another VP. Therefore, if a C UDR modifies global or static data in the data segment of one VP, the same data is not available if the thread migrates.

Figure 12-7 shows an implementation of a C UDR called bad_rowcount(), which creates an incremented row count for the results of a query.

/* bad_rowcount()

  *          Increments a counter for each row in a query result.

  *          This is the WRONG WAY to implement the function

  *          because it updates a static variable.

  */

mi_integer

bad_rowcount(Gen_fparam)

	MI_FPARAM *Gen_fparam;

{

	static mi_integer bad_count = 0;

	bad_count++;

	return bad_count;

}

Suppose the following SELECT statement executes:

SELECT bad_rowcount(), customer_id FROM customer

The CPU VP that is processing this query (for example, CPU-VP 1) executes the bad_rowcount() function. The bad_rowcount() function is not well- behaved because it uses a static variable to hold the row count. Use of this static bad_count variable creates the following problems:

• The updated bad_count value is not visible when the thread migrates to another VP.

When bad_rowcount() increments the bad_count variable to 1, it updates the static variable in the shared-object data segment of CPU-VP 1. If the thread now migrates to a different CPU VP (for example, CPU-VP 2), this incremented value of bad_count is not available to the bad_rowcount() function. This next invocation of bad_rowcount() gets an initialized value of zero (0), instead of 1.

• Concurrent activity of the bad_rowcount() function is not interleaved.

For example, suppose CPU-VP 1 and CPU-VP 2 are processing session threads for three client applications, each of which execute the bad_rowcount() function. Now two copies of the bad_count static variable are being incremented among the three client applications.

A well-behaved C UDR can avoid use of global and static data with the following workarounds.

If your C UDR cannot avoid using global or static variables, it is an ill-behaved routine. You can execute the ill-behaved routine in a nonyielding user-defined VP class but not in the CPU VP. A nonyielding user-defined VP prevents the UDR from yielding, thereby preventing it from migrating to another VP. Because the nonyielding VP executes the UDR to completion, any the global (or static) value is valid for the duration of a single invocation of the UDR. The nonyielding VP prevents other invocations of the same UDR from migrating into the VP and updating the global or static variables. However, there is no way to guarantee that the UDR will return to the same VP for the next invocation.

For the global (or static) value to be valid across a single UDR instance (all invocations of the UDR), define a single-instance user-defined VP. This VP class contains one nonyielding VP. It ensures that all instances of the same UDR execute on the same VP and update the same global variables. A single-instance user-defined VP is useful if your UDR must access a global or static variable by its address.

For more information, see Choosing the User-Defined VP Class.

To be thread safe, a well-behaved C UDR most avoid modification of the global process state. All virtual processors that belong to the same VP class share access to both data and processing queues in memory. However, the global process state is not shared. The database server assumes that the global process state of each VP is the same. This consistency ensures that VPs can exchange work on threads.

For a C UDR to be well-behaved, it must avoid any programming tasks that modify the global process state of the virtual processor. Update of global and static data (page 12-31) involves modification of the global process. Various operating-system calls can alter the process state and therefore are restricted. The following table shows the categories of operating-system calls that modify the global state of the CPU VP.

The calls in the preceding table can interfere with thread migration because the global process state does not migrate with the thread. In addition, you need to be careful with tasks such as opening file descriptors and using operating-system threads.

If a C UDR modifies the global process state, it is ill-behaved. You can execute the ill-behaved routine in a single-instance user-defined VP class but not in the CPU VP. A single-instance user-defined VP class contains one VP. Therefore, it ensures that all invocations of a UDR instance execute on the same VP and update the same global process state. For more information, see The Single-Instance User-Defined VP.

A well-behaved C UDR must avoid the use of system calls. System calls can have the following adverse effects:

• They might block, which causes the operating system to suspend the process that calls them.

This suspension slows down both the C UDR that contains the calls and any other threads that share the same CPU virtual processor.

• Many system calls allocate resources local to the process and are not re-entrant.

Informix cannot provide a definitive list of unsafe system calls because system calls that are unsafe vary among versions of operating systems and different types of operating systems. Additionally, the implementation of the VPs is different between UNIX and Windows NT.

On UNIX systems, the VPs are implemented as separate processes.

On Windows NT, each VP is an NT thread of a common process.

The difference in VP implementation means that some system calls are acceptable when the C UDR runs on Windows NT but not when this same UDR runs on UNIX. There are also differences in how UNIX handles shared libraries and how Windows NT handles dynamic link libraries (DLLs) that can affect the platform on which operating-system calls are valid.

However, for a C UDR to be well-behaved, it must use system calls with discretion. This section provides the following information about the use of operating-system calls in well-behaved UDRs:

• Categories of unsafe operating-system calls
• External-library routines
• Safe operating-system calls

A well-behaved C UDR must not include any of the categories of system calls in Figure 12-8. The system calls listed in the Sample Operating-System Calls column are listed only as possible examples. The operating-system calls that are unsafe in your C UDR can depend on your operating system. Consult your operating-system documentation for information on system calls that perform the categories of tasks in Figure 12-8.

Warning: The database server reserves all operating-system signals for its own use. The virtual processors use signals to communicate with one another. If a UDR were to use signals, these signals would conflict with those that the virtual processors use. Therefore, do not raise, handle, or mask signals within a C UDR.

You can use system utilities to check if undesired system calls were included in your shared-object file.

On UNIX systems, you can use the nm and ldd commands to obtain this information. The ldd command lists the dynamic dependencies from a shared object.

On Windows NT, you can use the DUMPBIN command with its /IMPORTS option to obtain this information.

Tip: Given a DataBlade build (.bld) file, check for unresolved references in the file and all its dependencies. You can compare this list for system calls that violate the rules of the VP you have chosen to execute your C UDR.

For a list of operating-system calls that are generally safe in a C UDR, see Safe System Calls.

Informix recommends that a well-behaved C UDR does not use routines from existing external libraries. Often these external routines contain indirect calls to unsafe operating-system calls.

If your C UDR must use an external routine, it is an ill-behaved routine. If it is essential to your application, you can take special measures to include calls to the following kinds of non-CPU-safe external library routines:

• Routines that do blocking I/O, such as routines that open files
• Routines that dynamically allocate memory, such as malloc()
• Routines that allocate static memory

For a non-CPU-safe routine to safely execute in a UDR, take the following steps:

• Divide the UDR into critical-code sections and DataBlade-API-code sections.
• Execute the UDR in a user-defined VP.

Important: Any external-library routine that uses signals cannot be used in a C UDR. Do not use this suggested workaround for any external-library calls that use signals.

For a non-CPU-safe call to execute safely, the thread that executes the UDR must not migrate out of the VP as long as the UDR uses the unsafe resources (open files, memory allocated with malloc, or static-memory data). However, DataBlade API functions might automatically yield the VP when they execute. This yielding causes the thread to migrate to another VP.

Therefore, you ca
