1. In the Scenes panel of the World Manager, right-click the world where you want to insert the parameter and selectInsert Global Parameter from the popup menu to display the Insert Parameter dialog box.
2. Type a parameter name in the Name text box.
3. Select a data type from the Data type list box.
4. Optionally, you can provide descriptive text in the Description text box.
5. Check the Has default value check box and type the default value.
6. Optionally, check the Make public at runtime check box if you want the parameter to be available to the end user in Visionary Viewer.
1. Insert the global parameter you want to use.
2. In the Scenes panel, select the layout that contains the data element.
3. Select the data element in the Object Inspector list box.
4. Type the property expression IsViewer(ViewerClass) in the visibility property cell as shown in Figure 11-5
IsViewer(ViewerClass)
Figure 11-5 Specifying ViewerClass Global Parameter in Visibility Property
Using Global Parameters in Event Actions You can use global parameters when you create event actions. Suppose you have a scene that contains a pie chart to show the percentages of sales per customer. You might want to allow users to click on a wedge and jump to another scene that shows more details about the wedge. You can use global parameters when you define the event action in the Object Behavior dialog box. Here is an example of how you might do that. To set global parameters in an event action on a Wedge object:
2. Select the pie chart in the scene where you want to create the event action.
3. Choose View Data Element to display the data element in the Data Element Editor.
4. Select the Wedge object in the Object Inspector list box.

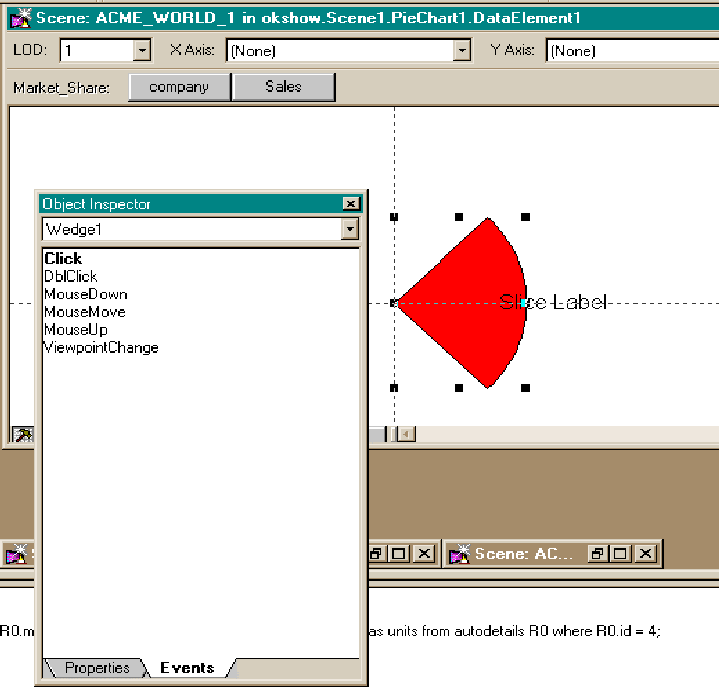

5. Click the Events tab in the Object Inspector to display the Events page, as shown in Figure 11-6.
Figure 11-6 Selecting the Click Event
6. Double-click the Click event cell to display the Object Behavior dialog box, as shown in Figure 11-7
Figure 11-7 Setting a Jump Action on a Wedge Object
7. Select Jump to new location in the Action list box.
8. Select a scene in the Scene list box.
9. Select a viewpoint from the Viewpoint list box.
10. Click Apply.
11. Click the Set Parameters tab to display the Set Parameters page.
12. Click New and then click one of the grid cells in the Parameter column to display a list box and select a global parameter from the list box, as shown in Figure 11-8
Figure 11-8 Setting Global Parameters in an Event Action
13. Select a column name in the Value list box.
14. Click OK to close the dialog box.
15. In the Data Element Editor, click Runtime Mode and test the event action by clicking on one of the pie chart wedges.
Global Parameter from the popup menu to display the Insert Parameter dialog box.
